Bathroom Dimensions and Clearances: Complete Planning Guide

Bathroom dimensions and clearances are not only about making sure furniture, sanitaryware, a shower or a bath physically fit into the available space. They are ergonomic measurements that directly affect comfort, functionality and ease of use in everyday life.

A well-planned bathroom allows you to move freely, use the basin without obstacles, open drawers and doors comfortably, step into the shower without difficulty and make the most of every available centimetre. By contrast, clearances that are too tight can make even a beautifully furnished bathroom uncomfortable to use.

For this reason, there are several reference ergonomic measurements commonly used in interior design. These are not absolute rules or mandatory regulations, but values generally considered functional for creating a good user experience.

In this guide, you will find the main bathroom dimensions to know: space in front of the basin, distance between sanitaryware, minimum circulation space, bathroom vanity unit dimensions, correct basin height, shower and bath sizes, mirror proportions and recommended dimensions for a double basin unit.

If, instead, you are planning the entire room and want to explore layout, style and overall organisation in more detail, you can also read our dedicated guide on how to furnish a bathroom.

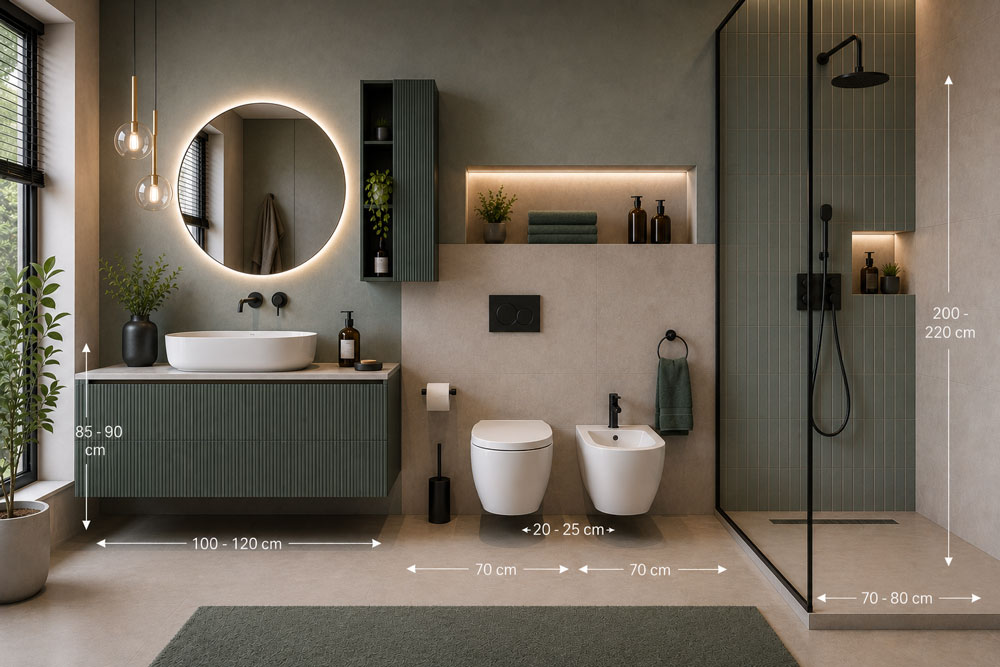

Correct bathroom dimensions and clearances with vanity unit and sanitaryware

How to measure your bathroom before choosing a vanity unit

Before choosing a bathroom vanity unit, it is essential to take all the room measurements correctly. Even a few centimetres can affect comfort, the arrangement of the elements and the ability to use the furniture properly.

The measurements to check before buying a bathroom vanity unit are:

Room dimensions

Measure the width and depth of the bathroom, checking for uneven walls, niches, recesses or projections that could affect the installation of the vanity unit.

Doors, windows and heated towel rails

Check the position of the door, the opening direction, any windows, radiators and heated towel rails that could interfere with furniture, doors and drawers.

Waste pipes, water connections and sockets

Identify the exact position of waste pipes, plumbing connections and electrical sockets for the mirror, lighting and accessories.

Clearances and openings

Check the distance between walls and existing sanitaryware, the space available in front of the basin and the space needed to open drawers and doors fully.

Practical advice

A simple method is to mark the footprint of the vanity unit on the floor using masking tape or cardboard. This allows you to check immediately whether the clearances will genuinely feel comfortable in everyday use.

How much space do you need to move around in a bathroom?

The comfort of a bathroom depends largely on the free space available in front of the main elements. Even when furniture and sanitaryware fit correctly into the room, overly narrow circulation areas can make the bathroom less practical to use every day.

The measurements in this guide are not random. They are based on the need to allow natural movement during daily activities: using the basin, sitting on the sanitaryware, opening drawers, stepping into the shower or accessing the bath.

When spaces are too tight, the bathroom can become less practical to use and harder to keep tidy. By contrast, respecting the main ergonomic measurements helps improve comfort, safety and functionality over time.

Area	Functional minimum	Recommended measurement	High comfort
In front of the basin	60 cm	70-80 cm	90 cm or more
In front of the WC and bidet	55-60 cm	70 cm	80 cm or more
In front of the shower or bath	60 cm	70-80 cm	90 cm or more

In very small bathrooms, it may be necessary to work close to the minimum measurements. When space allows, moving towards the recommended values noticeably improves comfort, freedom of movement and ease of use.

Distances between basin, WC and bidet

In addition to front clearance, it is important to consider the side distance between the different sanitaryware elements. Leaving the right amount of space between the basin, WC and bidet makes movement easier, improves cleaning access and helps the bathroom feel more balanced and functional.

Elements	Recommended distance	Purpose
Basin - WC	15-20 cm	Makes use and cleaning easier.
Basin - Bidet	15-20 cm	Improves freedom of movement.
WC - Bidet	20-25 cm	Allows the two elements to be used more comfortably.

These distances are indicative values that allow the sanitaryware to be used more comfortably without taking up excessive space.

Shower enclosure and bath dimensions

The area dedicated to hygiene and wellbeing should be proportionate to the available space and to everyday habits. A shower that is too compact can restrict movement, while a bath needs adequate dimensions to ensure comfort and practicality.

Shower enclosure sizes

70x70 cm: compact solution for very small bathrooms.
80x80 cm: very common standard size and a good space-saving compromise.
80x120 cm: high comfort and greater freedom of movement.
90x120 cm or more: ideal solution for walk-in showers and larger bathrooms.

Bath sizes

140-150 cm: compact baths for limited spaces.
160-170 cm: the most common standard size.
180 cm or more: large baths or freestanding models.

When space allows, a shower measuring 80x120 cm or larger generally offers more comfort than compact solutions. In larger bathrooms, the bath can become a feature dedicated to relaxation and everyday wellbeing.

Correct installation height for the basin

The height of the basin directly affects everyday comfort and posture during use. The generally recommended height for the upper edge of the basin is between 85 and 90 cm from the finished floor level.

For particularly tall people, a slightly higher height can be considered, between 90 and 95 cm, while still maintaining a comfortable position during use.

Note for countertop basins

If you are using a bowl basin placed on top of the countertop, the height of the base unit must be calculated by taking the thickness of the basin into account. The aim is to keep the final upper edge within the recommended ergonomic range.

Bathroom vanity unit dimensions: complete guide

The vanity unit is the main element of the basin area. Its dimensions should balance storage capacity, available space and freedom of movement within the bathroom.

Bathroom type	Vanity unit width	Vanity unit depth	Design logic
Cloakroom or guest bathroom	60-80 cm	35-45 cm	Reduced depth to preserve circulation space.
Main bathroom	80-100 cm	45-50 cm	Best balance between storage and footprint.
Family bathroom	100-120 cm	45-50 cm	Greater storage capacity and countertop space.
Double basin unit	140-160 cm or more	45-50 cm	Two independent stations and greater comfort in use.

In small bathrooms, it is often better to reduce the depth of the vanity unit rather than sacrifice circulation space. In most homes, units between 80 and 100 cm wide offer the best compromise between practicality, storage and overall footprint.

Dimensions are only one of the aspects to consider. Materials, finishes and resistance to humidity also have a major impact on how long the unit will last over time.

You can explore the topic further in our guide to materials for bathroom vanity units.

Recommended dimensions for a double basin unit

A double basin unit is particularly useful in bathrooms shared by two people and allows the basin area to be used at the same time without interference.

A width of 120 cm is generally the minimum limit for a compact configuration. Measurements between 140 and 160 cm offer the best balance between comfort, countertop space and ease of use.

When the bathroom dimensions allow it, a composition of 180 cm or more provides superior comfort, greater independence between users and a larger countertop area.

Below 120 cm, it may be more functional to choose one large single basin, with better space organisation and greater storage capacity.

Small, narrow or large bathroom: how the measurements change

The same measurements can have different effects depending on the shape and floor area of the bathroom. For this reason, it is useful to think not only in centimetres, but also about the overall distribution of the elements.

Small bathroom of around 4 m²

In a small bathroom, it is important to keep the main circulation areas clear. Vanity units of 60-80 cm, reduced depths, large mirrors and wall-hung solutions that make the room feel visually lighter often work best.

Bathroom vanity unit of 60-80 cm.
Preferably reduced depth, between 35 and 40 cm.
Space in front of the basin close to 60-70 cm.
Large mirror to increase the perception of space.
Wall-hung furniture to make the bathroom feel visually lighter.

Example layout for a 5 m² bathroom

In a bathroom of around 5 m², a balanced configuration can include a 90 cm vanity unit with a depth of 45 cm, an 80x120 cm shower and clearances of around 70 cm in front of the main elements.

This configuration generally provides a good balance between storage, comfort and freedom of movement without overloading the available space.

Bathroom of around 6 m² or more

In a larger bathroom, it is possible to consider 100-120 cm vanity units, coordinated tall units, a double basin or a more generous bath. Even in this case, however, it is important not to fill every available wall.

Bathroom vanity unit of 100-120 cm or larger compositions.
Possibility to increase storage capacity.
Double basin unit if the bathroom is shared.
Larger bath or shower when space allows.

Narrow, long bathroom

Narrow bathrooms that extend lengthways require particular attention when choosing the vanity unit dimensions and managing circulation space. In these rooms, it is generally better to prioritise reduced depth rather than width.

Recommended vanity unit depth: 35-40 cm.
Space in front of the basin: at least 60 cm, ideally 70 cm or more.
Large mirrors to increase the perception of space.
Wall-hung furniture to make the room feel visually lighter.
Tall storage units only if they do not obstruct circulation space.

In many cases, a well-proportioned 80 cm vanity unit is more functional than a larger composition that takes up too much space.

In addition to dimensions, colours, lighting and the arrangement of the elements also influence how spacious the bathroom feels.

To explore these aspects in more detail, you can read our guide to bathroom colours and lighting.

How to proportion the mirror to the bathroom vanity unit

The mirror should be proportionate to both the vanity unit and the available wall space. The right choice helps make the bathroom feel more balanced, brighter and more pleasant to use.

Mirror aligned with the vanity unit

In many cases, the most harmonious solution is to choose a mirror with the same width as the vanity unit. This configuration helps maintain a tidy, visually balanced composition.

Slightly narrower mirror

A slightly recessed configuration can make the wall feel lighter and create a more dynamic effect, especially with round, oval or organically shaped mirrors.

In small bathrooms, a large mirror can increase the perception of space and improve the diffusion of natural and artificial light. By contrast, a mirror that is too small in relation to the vanity unit may look disproportionate and reduce the visual impact of the whole basin area.

When extra storage is needed, mirror cabinets are a practical solution because they make use of the space above the basin without taking up additional floor area in the bathroom.

You can explore the different options in the category dedicated to bathroom mirrors.

Mistakes to avoid with bathroom dimensions and clearances

Choosing a vanity unit that is too large

Even if it physically fits into the room, it can reduce circulation space too much and make the bathroom less comfortable.

Not considering drawer openings

The vanity unit should also be assessed when fully open, especially in narrow bathrooms.

Forcing in a double basin

In some bathrooms, one well-sized single basin is more functional than two basins placed too close together.

Underestimating the depth of the vanity unit

Just a few centimetres can have a major impact on comfort and freedom of movement.

Reducing the space in front of sanitaryware too much

This compromises everyday use and can make the bathroom harder to clean.

Not considering the shower enclosure opening

If you choose a hinged door, always check that it does not interfere with the vanity unit, sanitaryware or nearby walls.

Frequently asked questions about bathroom dimensions

How much space do you need in front of the basin?

For comfortable use, around 70-80 cm of free space in front of the basin is generally recommended. In very small bathrooms, this can be reduced to around 60 cm, but comfort will inevitably be lower.

What is the standard depth of a bathroom vanity unit?

The most common depth is between 45 and 50 cm, which offers a good compromise between storage capacity and overall footprint.

How much space do you need in front of the shower?

To enter and exit the shower comfortably, it is advisable to leave at least 70 cm of free space. When the bathroom dimensions allow it, 80 cm or more provides a higher level of comfort.

What is the ideal size for a small bathroom?

There is no single measurement that works for every case. In general, in small bathrooms it is better to prioritise comfortable circulation and a correct arrangement of the elements rather than fitting in furniture that is too large.

Is a wall-hung or floor-standing vanity unit better in a small bathroom?

In small bathrooms, a wall-hung vanity unit often helps make the room feel visually lighter and more airy. In larger bathrooms, both solutions can work well, provided they are proportionate to the available space.

Is a shower or bath better in a small bathroom?

In many compact bathrooms, a shower makes it easier to optimise the available space. A bath may be more suitable when the bathroom has a larger floor area and the priority is comfort and relaxation.
