Utility Room Dimensions and Organisation: Measurements and Layout Guide
A well-designed utility room does not depend solely on the quality of the furniture or the presence of the most advanced appliances. The real difference between a practical space and an uncomfortable one is often determined by a much simpler factor: correct space planning and a precise study of clearances.
Passages that are too narrow, doors that obstruct one another, appliance columns that are difficult to use or insufficient work surfaces can compromise the everyday practicality of even the most elegant utility room. By contrast, correct organisation of measurements allows you to work fluidly, reduce unnecessary movement and keep the room tidy over time.
In this guide, we will analyse the recommended minimum dimensions, the most important ergonomic rules, the technical tolerances required for services and the best organisational solutions for designing a truly functional utility room.
How much space do you need for a utility room?
There is no ideal size that applies to every home. The required floor area depends on the number of people in the household, the frequency of washing cycles and the number of activities, such as ironing or pre-sorting garments, that you want to concentrate within the same room.
However, it is possible to identify several reference size ranges. These dimensional thresholds help you immediately understand which furniture configuration is structurally sustainable within your floor plan.
| Type of space | Indicative size | Suitable furniture configuration |
|---|---|---|
| Compact utility area or niche | 2 - 3 m² | Vertical development is essential. Stacked washer-dryer column, compact utility sink unit and wall-hung storage modules. |
| Standard utility room, in a bathroom or dedicated room | 4 - 6 m² | Linear or corner layout. Space for washing machine and tumble dryer, even side by side, generous utility sink, broom cupboard and integrated baskets. |
| Complete utility room | Over 6 m² | Multifunctional layout. Continuous fitted walls, deep cupboards, permanent ironing worktop and an area for an airer. |
Appliance dimensions and technical furniture tolerances
Utility room design inevitably begins with the real dimensions of the washing machine and tumble dryer. Although the external dimensions declared by manufacturers are standardised around fixed width and height values, the most common furniture planning mistake is failing to calculate the technical clearance required for the appliances to function correctly.
A standard washing machine or tumble dryer nominally measures 60 cm wide, 85 cm high and between 55 and 65 cm deep. When these elements are inserted inside utility room furniture or a storage column, it is essential to apply the following dimensional criteria:
- Rear technical space: behind the appliances, allow an extra 5 to 7 cm beyond the depth of the machine. This space is essential for water inlet and waste hoses, electrical sockets and correct air circulation, helping to prevent the motors from overheating;
- Finished furniture depth: a unit designed to house standard appliances generally has a total external depth between 68 and 72 cm, depending on the type of structure and also taking into account the thickness of the front closing door;
- Slim solutions with reduced depth: if the architectural space is less than 60 cm deep, slim washing machines and tumble dryers with a reduced depth of 40-45 cm are available. In this case, utility furniture manufacturers offer specific units with a finished depth of around 50-55 cm, ideal for resolving layout constraints in small bathrooms or corridors;
- Internal usable width: professional utility room columns have an internal usable width specifically designed to allow easy insertion of a 60 cm appliance, while absorbing the micro-movements and vibrations generated during spin cycles.
| Single element | Nominal width | Actual appliance depth | Indicative external furniture depth |
|---|---|---|---|
| Standard washing machine / tumble dryer | 60 cm | 55 - 65 cm | 68 - 72 cm including technical space and doors |
| Slim washing machine / tumble dryer | 60 cm | 40 - 45 cm | 50 - 55 cm, ideal for compressed spaces |
| Stacked column without furniture | 60 cm | 60 - 65 cm | Fixed footprint based on the stacking kit |
| Closed tall unit with doors | 65 - 70 cm | External furniture structure varies by manufacturer | 68 - 72 cm external depth, overall height 180-210 cm |
Pay attention to the thickness of the side panels: A common mistake is calculating the external footprint of the unit without checking the internal usable width. Quality utility room furniture has structural side panels that generally vary between 1.8 cm and 4 cm per side. As a result, a tall unit with an external width of 65 cm will have an internal usable space of around 58-61 cm: a precise measurement that requires perfectly levelled standard appliances or the choice of slim machines. For complete installation freedom and ventilation, compositions with an external width of 70 cm remain the most versatile choice.
Circulation space and opening ergonomics
The efficiency of a utility room is measured by the freedom of movement it offers during the loading and unloading of heavy or wet laundry. It is not enough for a unit to fit geometrically inside the room: you also need to calculate the working space required by people and by moving furniture components.
The rules of ergonomics applied to the utility room define three fundamental circulation thresholds:
Minimum manoeuvring distances
- 80 cm: this is the minimum front passage distance. It allows one person to pass but limits movement when carrying a bulky laundry basket;
- 90 cm: this is the recommended front space in front of the washing machine and tumble dryer. It allows you to bend down comfortably to open the porthole door and load laundry without hitting the opposite wall;
- 100 - 120 cm: this is the ideal distance overall. It allows a hinged furniture door to open fully, with a rotation footprint of around 60 cm, while still maintaining the working space needed to crouch or move freely without spatial constraints.
The footprint of pull-out large drawers: If the utility room includes base units with large drawers or full-extension laundry baskets, remember that the runners extend by the same depth as the unit itself, usually 50 or 60 cm. Therefore, a 60 cm deep unit with the drawer fully open will occupy a total of 120 cm. In these areas of the room, the available front space should never be less than 130-140 cm, otherwise the user may be trapped between the open drawer and the wall behind.
If the room is narrow, as in corridors or tight hallways, the design choice should necessarily favour utility room columns with fully concealed pocket doors that slide back into the sides or folding opening systems, effectively eliminating the external footprint of the open door.

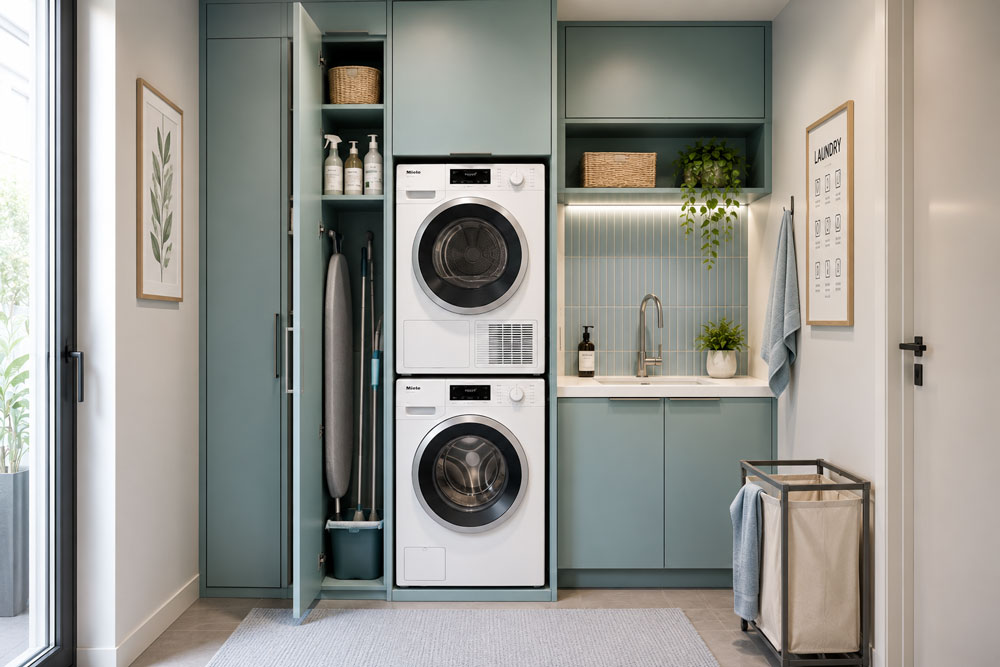

How to organise a narrow, long utility room
In utility rooms that develop lengthways, it is generally preferable to place furniture, tall units and appliances along a single wall, keeping the central corridor free. This configuration preserves ease of movement and reduces the footprint of openings.
In these contexts, multifunctional columns, full-height cupboards and vertical storage systems are particularly effective because they make use of every available centimetre.
Furnish your utility room to the centimetre
If you have defined the measurements of your space and are looking for the ideal furniture modules to compose a made-to-measure project, explore our dedicated sections:
- Utility room furniture: complete compositions and modular units.
- Washing machine and tumble dryer columns: reinforced, stable structures for appliances.
- Utility room cupboards: wardrobes, pantry-style storage and vertical broom cupboards.
- Utility sinks: deep furnishing basins with washboard.

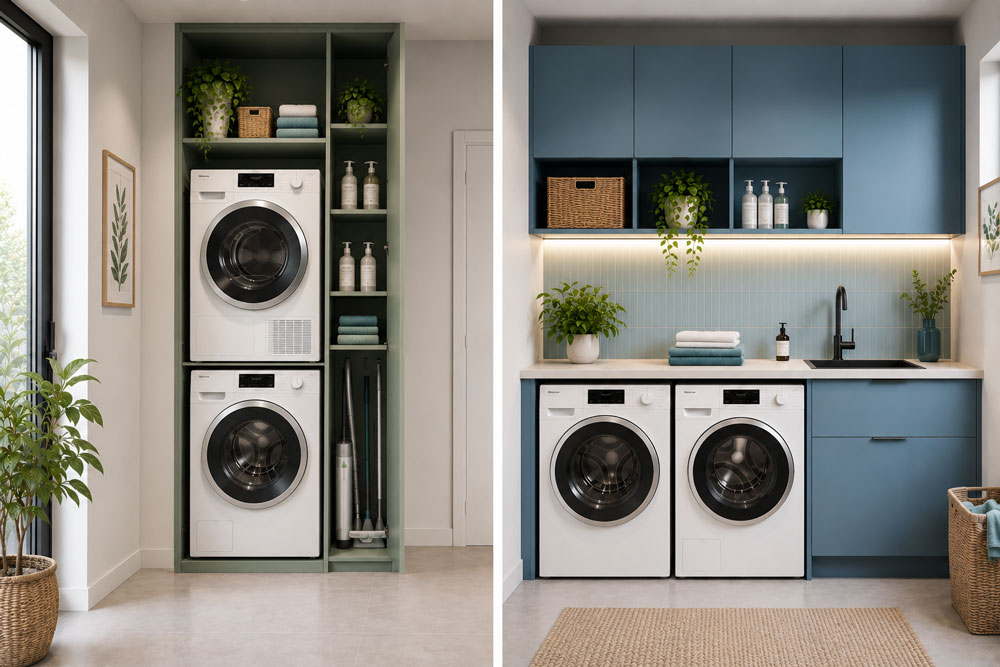

Stacked or side-by-side layout: ergonomic and postural analysis
The choice between vertical development, with a stacked column, and horizontal development, with side-by-side appliances, is not only a matter of space. It also radically changes everyday ergonomics and the height of the working surfaces.
The stacked configuration
This represents the most efficient optimisation of floor space. From a postural point of view, placing the tumble dryer above the washing machine means the second porthole usually sits at a height of around 140 to 150 cm from the floor. This axis height is ideal because it allows you to transfer garments from one machine to the other and remove laundry while maintaining an upright posture, avoiding repeated bending of the spine.
The side-by-side configuration
This requires a linear floor development of at least 120-140 cm. The great ergonomic advantage of this choice lies in the possibility of placing a continuous worktop above the two appliances at around 88-90 cm from the floor. This generous horizontal surface is perfect for placing laundry baskets, pre-treating stains on fabrics and folding dry garments as soon as they are removed.
Utility sink unit dimensions and basin ergonomics
The utility sink is the central water point of the utility room. Unlike a standard bathroom basin, it is designed for hand-washing bulky garments, filling buckets or soaking laundry. This requires specific geometry and installation heights.
- Height from the floor to the upper edge: the ideal height reflects that of kitchen worktops, generally between 86 and 90 cm from the floor. This height allows you to lean on the washboard without excessively bending the lower back;
- Basin depth: while a traditional basin is 12-15 cm deep, a true utility sink should have an internal usable depth between 25 and 35 cm. This volume prevents water from splashing out and allows bowls or buckets to be fully immersed;
- Unit width and depth: standard utility sink units are available in fixed widths of 45, 50, 60, 75 or 80 cm. Depth varies according to the layout: compact models are usually around 50 cm deep, while those designed to align with appliance columns reach 60-65 cm to ensure perfect aesthetic continuity across the furniture line.
If you are comparing the different dimensions available, you can browse our selection of utility sinks , available in various widths and depths to suit both compact utility areas and more spacious rooms.
Water connection and waste heights
During construction or renovation, remember that the standard height for water connections, hot and cold, for a utility sink unit should be positioned at around 45-55 cm from the floor, with the central waste positioned at around 45-50 cm. Placing the water outlets too high risks interference with the underside of the deep basin, preventing correct wall installation of the unit.

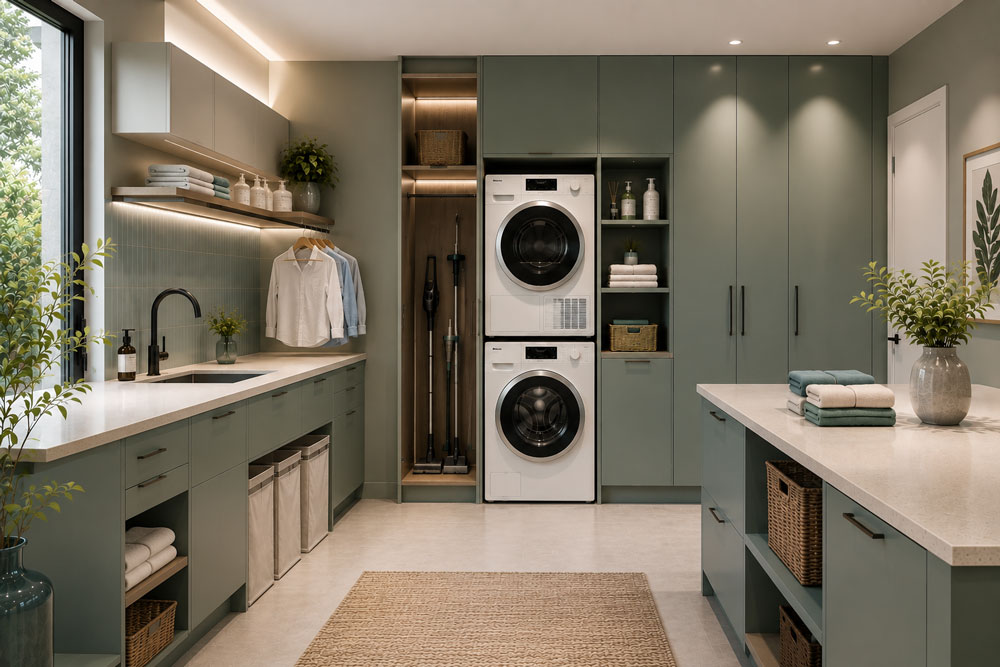

Organising storage efficiently
Storage capacity is the real element that determines the success of a utility room and its ability to remain tidy over time. Many rooms look visually chaotic not because they genuinely lack square metres, but because cupboards and internal compartments are distributed poorly in relation to the objects they need to contain.
Materials also play an important role in the utility room, especially in spaces exposed to humidity and intensive use. To explore the characteristics of the main finishes, you can read our guide to bathroom materials, countertops and finishes.
| Furniture element | Depth and key dimensions | Logical internal organisation |
|---|---|---|
| Linear utility room cupboard | Indicative depth 60 - 70 cm | Ideal for alignment with appliance columns. It can house large pull-out baskets for pre-sorting whites and coloured garments. |
| Broom and vacuum cleaner tall unit | Recommended minimum depth 35 - 45 cm | Full-height vertical compartment, usually with at least 140 cm of internal usable height, without central shelves, allowing brooms, foldable ironing boards and cordless vacuum cleaners to be stored. |
| Wall units and suspended modules | Reduced depth of around 35 cm | Positioned above the utility sink or worktop. Perfect for storing detergents, bottles and chemical products out of children's reach. |
| Pull-out laundry baskets and modules | Module width from 45 to 90 cm | Systems integrated into the furniture, either tilt-out or on pull-out runners, for pre-sorting garments before washing. |
From a geometric point of view, planning the space for collecting dirty laundry is crucial. For optimal home management, the most complete solution is a 5-basket configuration, divided into whites, darks, colours, delicates and sports synthetics. A system of this kind requires a dedicated furniture module at least 60-90 cm wide if positioned at floor level, or tall modules that make use of vertical space.
If the available space is limited, under 3 m², the ideal compromise is a 2- or 3-basket configuration, or one large basket with flexible internal compartments. To discover in detail how to divide garments within these modules and optimise washing cycles, you can read our guide focused on bathroom and utility room storage solutions.
Mistakes to avoid in the geometric organisation of space
Reducing operational clearances too much
Forcing overly deep furniture into narrow rooms compromises everyday use. If the space in front of the machines drops below 80 cm, removing wet laundry becomes tiring and posturally incorrect.
Ignoring appliance door opening direction
During appliance installation, the opening direction of the washing machine and tumble dryer porthole doors should be coordinated, ideally opposite one another or oriented towards the basket holding area, so they do not create physical barriers when transferring garments.
Underestimating space for the ironing board
An ironing board requires an operational space of at least 130-150 cm in length when open. Failing to plan where it will be positioned in relation to electrical sockets and lighting is one of the most common layout mistakes in modern homes.
Forgetting the structural weight on shelves
Detergent bottles and concentrated stock products can create considerable weight. Using standard, non-reinforced shelves or shelves without central anti-sag supports inside very wide cupboards, over 90 cm, quickly leads to bowing.
Frequently asked questions about utility room dimensions and measurements
How large does a room need to be for a functional utility room?
In many cases, a functional utility room can be organised in around 3 m², for example a room measuring 150x200 cm. In this space, it is possible to arrange an appliance column, a compact utility sink unit and a tall cupboard, while maintaining sufficiently comfortable circulation space for everyday use.
What is the ideal depth of utility room furniture for built-in appliances?
The recommended total external depth is generally between 68 and 72 cm. This measurement takes into account the body of the appliance, the rear space required for water hoses to pass without being crushed and the thickness of the front closing door.
How much space is needed to install a washing machine and tumble dryer side by side?
In most cases, a minimum width between 120 and 130 cm should be allowed for two standard 60 cm appliances. If you want to add a side or central work surface, it is advisable to have at least 140-160 cm overall.
How much free space is needed in front of the washing machine to open it comfortably?
A minimum free front space of 90 cm should be allowed. This distance allows the washing machine or tumble dryer porthole door to open fully and leaves the manoeuvring space needed to bend or crouch comfortably during loading.
What are the indicative dimensions of a washing machine and tumble dryer column inside furniture?
A tall unit designed to house the two appliances stacked usually has an external width between 65 and 70 cm, a depth of around 68-72 cm and an overall height that varies between 180 and 210 cm, depending on the manufacturer and design.
What is the correct height for a utility sink?
To ensure a comfortable posture during hand-washing, the upper edge of the utility sink should generally be between 86 and 90 cm from the floor. This height reduces back fatigue and makes soaking and rinsing operations easier.
What is the minimum depth for a utility area?
To install a standard washing machine inside utility room furniture, it is advisable to allow an overall depth of at least 68-72 cm. With slim appliances, it is possible to reduce this to around 50-55 cm, while still maintaining the necessary space for hoses and ventilation.
