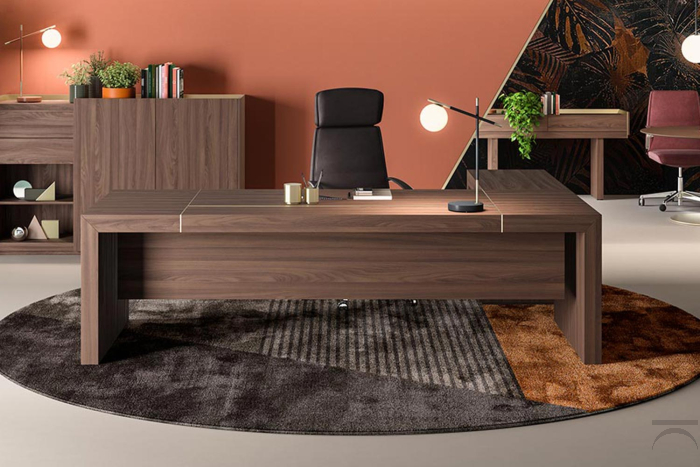

Block 2.0 desk

Leg:

made with panels with a thickness of 18/19 mm, depending on the finish, worked in folding to obtain an edge thickness of 88 mm. During assembly, two metal legs formed by tubular steel 40x40x2 mm and 60x15x1.5 mm painted with high-strength black epoxy powders are housed inside the folding body to ensure maximum solidity and stability to the structure. The metal legs are equipped with high-capacity ABS leveling feet. In the inner part of the leg d.1000 mm there is a panel in the same color as the structure, removable by means of a pressure clip, which allows the rapid channeling of the leg. The leg can be fitted with a retractable wireless charger (optional) or a cable gland (optional) positioned in the center of the leg. The lower part is closed by a removable panel with a pressure clip. The panel is in the same color as the ME structure, white or black in the other variants. On the side, in conjunction with the desk top, the leg is equipped with a decorative plate in 5 mm thick brushed oxidized brass aluminum (not included in the Block Easy 2.0 version).

Easy desk top:

made with panels with a thickness of 18/19 mm, depending on the finish, worked in folding to obtain an edge thickness of 88 mm. The top is supported by a metal beam made of steel tubing 60x15x1.5 mm and 50x50x2 mm painted with high resistance epoxy powders in black color to ensure maximum solidity and stability. The beam is equipped with quick couplings for connection to the side legs. The lower part is closed by a removable panel with a pressure clip in the same color as the ME structure, white or black in the other variants.

Slide desk top:

made with panels with a thickness of 18/19 mm, depending on the finish, worked in folding to obtain an edge thickness of 88 mm. The top is supported by a metal beam made of steel tubing 60x15x1.5 mm and 50x50x2 mm painted with high resistance epoxy powders in black color to ensure maximum solidity and stability. The beam is equipped with quick couplings for connection to the side legs. The top is divided into two, a fixed one matching the legs and a sliding one positioned on high-capacity ball guides, with the possibility of choosing different finishes from the structure. The sliding top leads to the lower channeling tank made of 1 mm thick folded steel painted with high-strength epoxy powders in black color that allows the housing of multiple sockets, or use as an additional compartment. The bottom is equipped with a black leather mat. The lower part is closed by a removable panel with a pressure clip in the same color as the ME structure, white or black in the other variants. In the junction between the fixed top and the sliding top, the structure is equipped with two 5 mm thick aluminum plates and a 10 mm thick brushed oxidized brass aluminum tube that allows easy passage of the desk top cables.

Skirts:

made with 18/19 mm thick panels, depending on the finish, and supported by 3 mm thick bent steel brackets painted with high resistance black epoxy powders connected by screws to the desk top beam.

Type it:

made with panels with a thickness of 18/19 mm, depending on the finish, worked in folding to obtain an edge thickness of 88 mm. Drawers made by means of lateral sides in steel sheet painted with high resistance epoxy powders in black color on high capacity and high sliding ball guides with total extraction system and push opening. Drawer bottom and back made of 18 mm thick panels in black color. The drawer is equipped with a mat in black leather. The typist is joined to the legs through the use of 3 mm thick bent steel brackets, painted with high-strength black epoxy powders. The dactyl is equipped with adjustable leveling feet with high capacity and resistance.

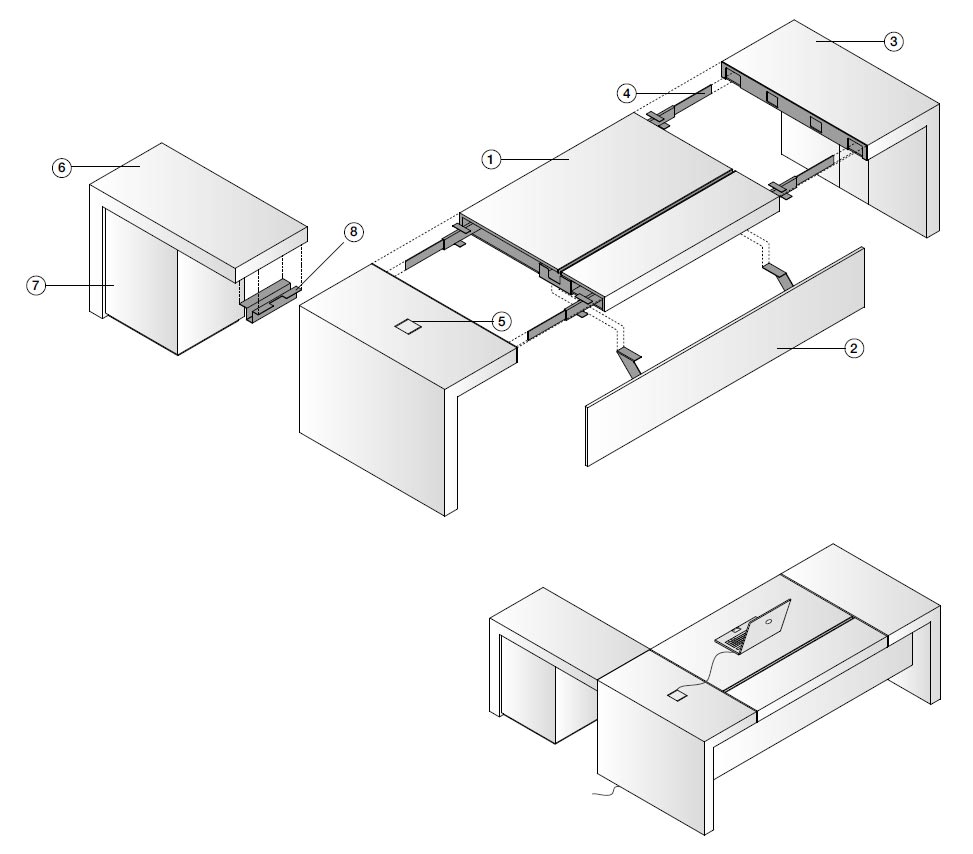

Exploded desk on slidinng unit:

• 1. Desk top 88 mm thick
• 2. Skirt with stirrups 18/19 mm thick
• 3. 88 mm thick ductable leg
• 4. Beam desk
• 5. Cable gland (optional)
• 6. Typing top 88 mm thick
• 7. Chest of drawers with 2 drawers
• 8. Connection bracket
